Forest River RV Flagstaff Hard Side A-Frames

Previous
Next
1 of 19

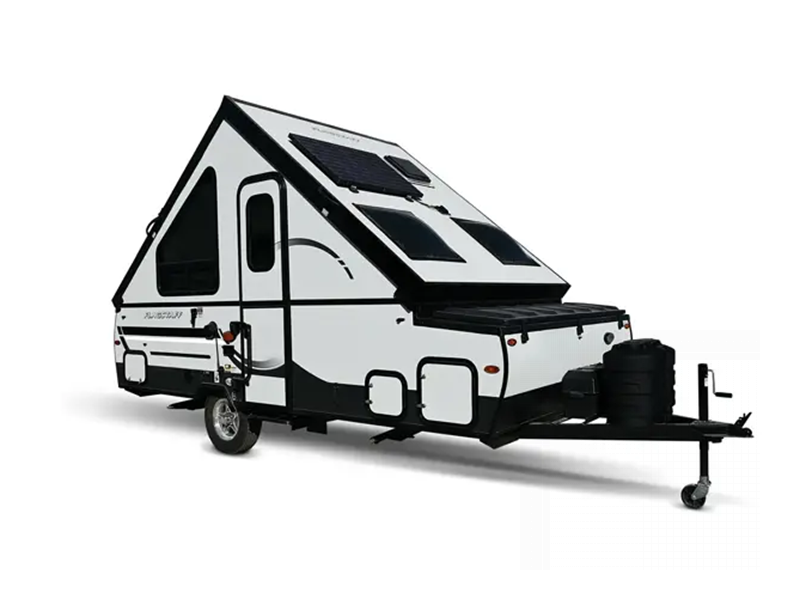

Do you want a pop-up camper that vacations like a larger travel trailer and has the storage space of a camper?  Well then, one of these Flagstaff Hard Side Series A-Frame's by Forest River is what you need!  These units offer plenty of luxurious features from home such as a WiFi range booster, AM/FM Digital Media Center with Bluetooth, MP3 Player, USB & Aux. ports, stainless steel look appliances, and a maple interior with "tile-look" linoleum backed by a twenty-five-year floor warranty.



The vacuum bonded exterior is a smooth oyster fiberglass over a powder coated tubular steel frame which is backed by a five-year frame warranty.  There is also a large rear roof tinted sky light with shade, two front roof tinted windows with shades, and a large, opening picture window.  The suspension system is constructed with a rubber cushioning to eliminate metal to metal contact done by Dexter Torflex which is also backed by a ten-year torsion axle suspension warranty.


You won't find an easier set up to make time spent with family and friends exactly what it should be, relaxing, enjoyable and easy to do. Come choose your favorite Flagstaff Hard Side Series A-frame model by Forest River today!

  • Flagstaff Hard Side T12BH

    Flagstaff Hard Side T12BH Floorplan Image

    Forest River Flagstaff Hard Side T12BH A-Frame highlights: Gas Grill Flip-Up-Bed ... more about Flagstaff Hard Side T12BH

    Specifications

    Sleeps 3
    Length 19 ft 2 in
    Ext Width 7 ft
    Ext Height 5 ft 1 in
    Hitch Weight 307 lbs
    Dry Weight 2267 lbs
    Cargo Weight 1040 lbs
    Fresh Water Capacity 20 gals
    Tire Size 13"
    Furnace BTU 10000 btu
    Available Beds Flip-Up
    Refrigerator Type Three Way
    Refrigerator Size 2.5 cu ft
    Cooktop Burners 3
    LP Tank Capacity 20 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI
    Axle Count 1
    Number of LP Tanks 2
    Electrical Service 30 amp
  • Flagstaff Hard Side T12RB

    Flagstaff Hard Side T12RB Floorplan Image

    Forest River Flagstaff Hard Side T12RB A-Frame highlights: EZ Reach Storage ... more about Flagstaff Hard Side T12RB

    Specifications

    Sleeps 3
    Length 17 ft 1 in
    Ext Width 7 ft
    Ext Height 5 ft 1 in
    Hitch Weight 222 lbs
    Dry Weight 2014 lbs
    Cargo Weight 1208 lbs
    Fresh Water Capacity 20 gals
    Tire Size 13"
    Furnace BTU 10000 btu
    Available Beds Flip-Up
    Refrigerator Type Three Way
    Refrigerator Size 2.5 cu ft
    Cooktop Burners 3
    LP Tank Capacity 20 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI
    Axle Count 1
    Number of LP Tanks 2
    Electrical Service 30 amp
  • Flagstaff Hard Side T12RBST

    Flagstaff Hard Side T12RBST Floorplan Image

    Forest River Flagstaff Hard Side T12RBST A-Frame highlights: Cool Cat Heat Pump ... more about Flagstaff Hard Side T12RBST

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 3
    Length 18 ft 10 in
    Ext Width 7 ft
    Ext Height 5 ft 1 in
    Hitch Weight 284 lbs
    Dry Weight 2120 lbs
    Cargo Weight 1164 lbs
    Fresh Water Capacity 20 gals
    Tire Size 13"
    Furnace BTU 10000 btu
    Refrigerator Type Three Way
    Refrigerator Size 2.5 cu ft
    Cooktop Burners 3
    LP Tank Capacity 20 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI
    Axle Count 1
    Number of LP Tanks 2
    Electrical Service 30 amp

Flagstaff Hard Side Features:

Standard Features



  • Maple Interior with “Tile-Look” Linoleum
  • Two-Tone Fabric Seating
  • Residential Style Kitchen Faucet
  • Stainless Steel Look Appliances and Sink
  • Electric Water Pump

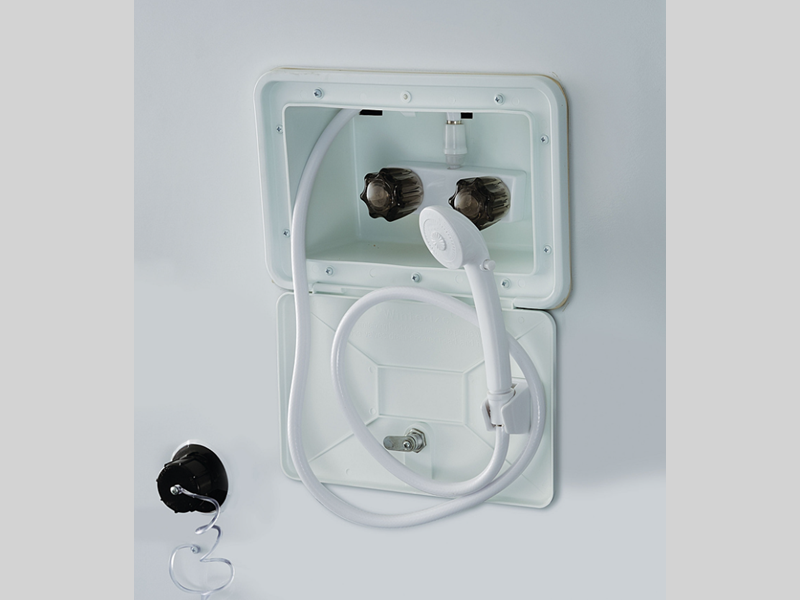

  • Hot Water Package (Incl. Water Filter, Outside Shower, Six Gallon DSI Hot Water Heater, Demand Water Pump)
  • Port-a-Potty (T12RB, T12RBS, T12RBTH, T12DDST , T19QBHW, T21QBHW Only)
  • Antifreeze Inlet to Bypass Fresh Water Tanks When Winterizing
  • Permanently Mounted 3-Burner Indoor Range w/ Glass Stove Top Cover
  • Microwave
  • 3 Way Refer 2.5 cu. ft.
  • Free Standing Lite-Ply Table–High Pressure Laminate (Most Models)

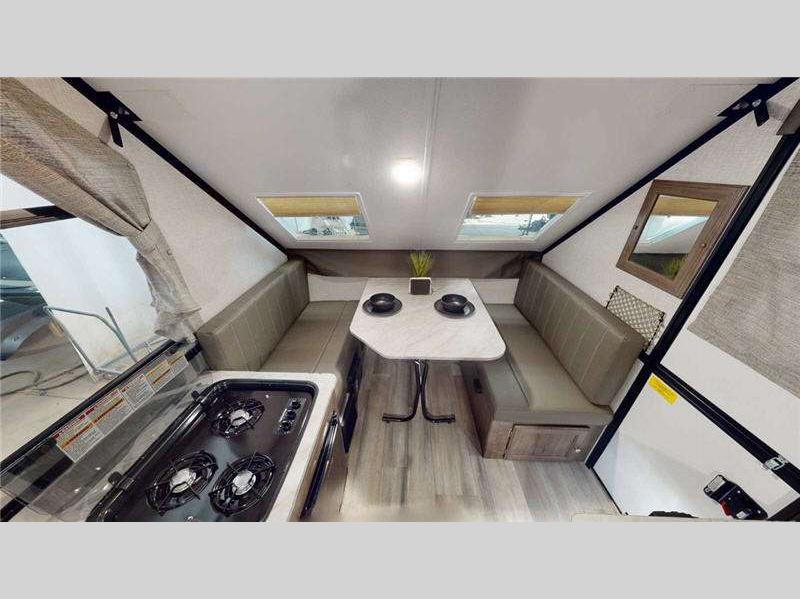

  • Comfortable Family Style Dinette w/ 4” Cushions
  • Residential Style Raised Panel Doors

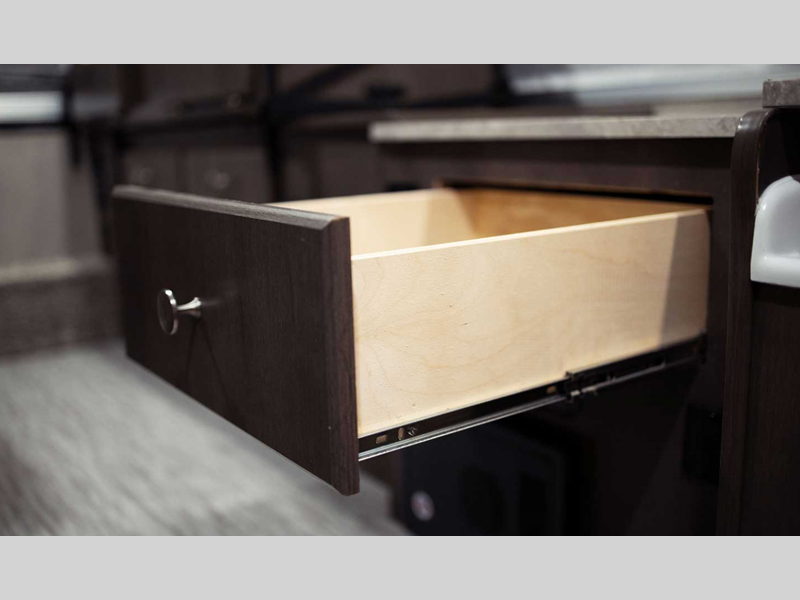

  • Wood Drawers w/ Full Extension Metal Guides
  • Large Clothes Bar
  • Optional Hanging Wardrobe
  • USB Charging Ports

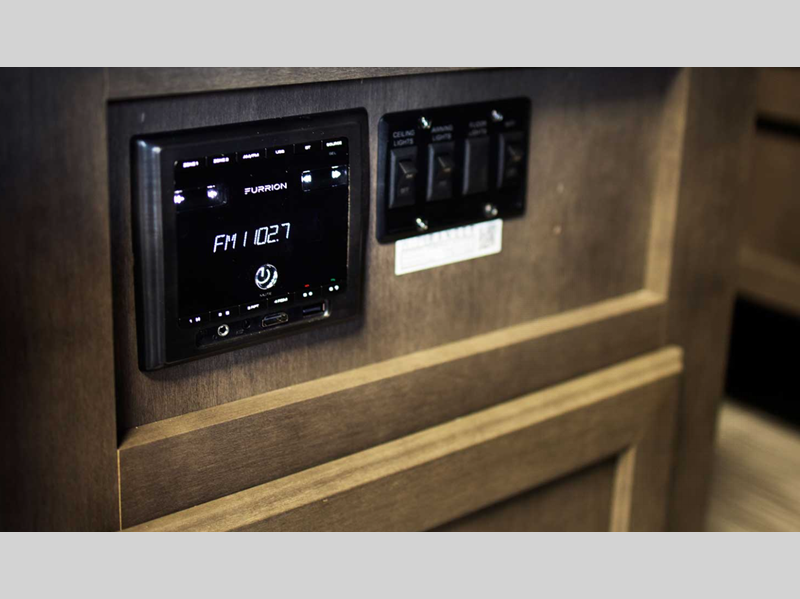

  • AM/FM Digital Media Center with Bluetooth, MP3 Player, USB & Aux. ports
  • TV Outlet with Cable and Satellite Hook Up
  • 30 Amp Detachable Power Cord w/ Storage Bag
  • 35 Amp Converter w/ Built in Battery Charger
  • 12V Safety Breaker

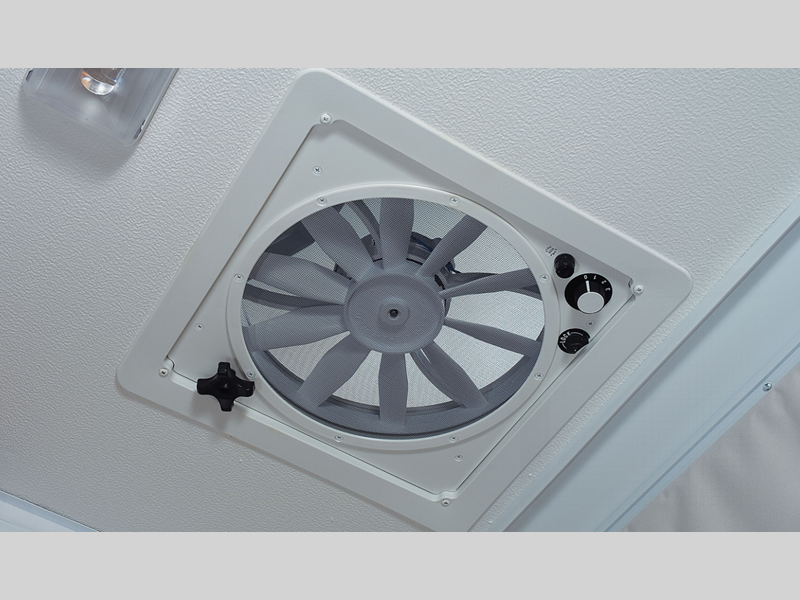

  • Three Speed Ventilation Fan
  • 10k BTU Cool Cat Heat Pump
  • Optional 20k BTU Forced Air Furnace w/ Electric Ignition
  • Interior Floor Lights
  • 2 Ceiling LED Lights
  • LP Leak/Carbon Monoxide Detector
  • Privacy Curtains
  • Quilted Top Innerspring Mattresses (T12RB, T12RBS, T12RBBH, T12RBTH Only)
  • Thermostatically Controlled Heated Mattresses (N/A T12BH, T21FKHW, T21TBHW Only)
  • Independent Torsion Axles
  • Easy Lube Axles
  • Spare Tire, Cover and Mount
  • 13” Radial Tires w/ Aluminum Wheels (N/A T12RBTHSE, T12RBSSE, T21QBHW, T21TBHW, T21DMHW)
  • 14” Radial Tires w/ Aluminum Wheels (T21QBHW, T21TBHW, T21DMHW Only)
  • 15” Mud Rover Radial Tires, Aluminum Wheels (Select Floorplans)
  • Electric Brakes
  • EZ Reach Storage with Sliding Tray All Front Trunk Models and Rear O/D Under Bed Storage (T19QBHW, T21BHWSE, T21QBHW, T21DMHW)
  • 28.5” Front Storage Deck w/ 200 # Weight Capacity (Select Floorplans)
  • Optional (4) Bike Rack (Note: T12RB - 2 Bikes only)
  • ProRac Systems
  • Optional ProRac Systems Upright Bike Carrier
  • Optional ProRac Systems Kayak Carrier
  • Optional ProRac Systems Load Stops
  • Optional ProRac Systems Tie Downs
  • Gas Strut Lift Assist
  • Built-in A-Frame Mounting Provision for Equalizer Hitch Bar Installation
  • Battery Box and Wiring Kit
  • Solar Panel Prep
  • Optional 40 Watt Solar Panel
  • 100 Watt DC, Roof Mount Solar Panel with 300 Watt AC Inverter (Select Floorplans)
  • Dual 20 lb. LP Bottles with Molded Hard Cover and Automatic LP Regulator
  • Diamond Plated Lower Front Cap
  • Optional Awning/Screen Room
  • Outdoor Gas Grill w/ Worktable
  • Outside Speaker
  • Courtesy Light on Front
  • 110V Exterior Outlet
  • Door Step (Select Floorplans)
  • Vented Entrance Door Window w/ Screen
  • Folding Grab Handle
  • Exterior Graphic Design

Standard Construction Features

  • Completely Enclosed Living Area
  • Fiberglass Vacuum Bonded Roof with Metal Interior Roof
  • WIFI Ranger WIFI Booster
  • Large Rear Roof Tinted Sky Light with Shade
  • Two Front Roof Tinted Windows with Shades
  • Smooth Oyster Fiberglass Vacuum Bonded Exterior w/ Black Accents
  • Large, Opening Picture Window
  • One Piece Undercoated Structure Wood Floor
  • Powder Coated Tubular Steel Frame
  • (4) E-Z Crank-Down Stabilizer Jacks w/ Sand Pads
  • Seamless, High Density Polyethylene Wheel Wells
  • Under Floor 20 Gallon Fresh Water Tank
  • 2000 lb. Tongue Jack w/ Swivel Wheel
  • Optional Power Front Jack
  • 7-Way Pigtail Plug

See us for a complete list of features and available options!

All features and specifications are subject to change.
